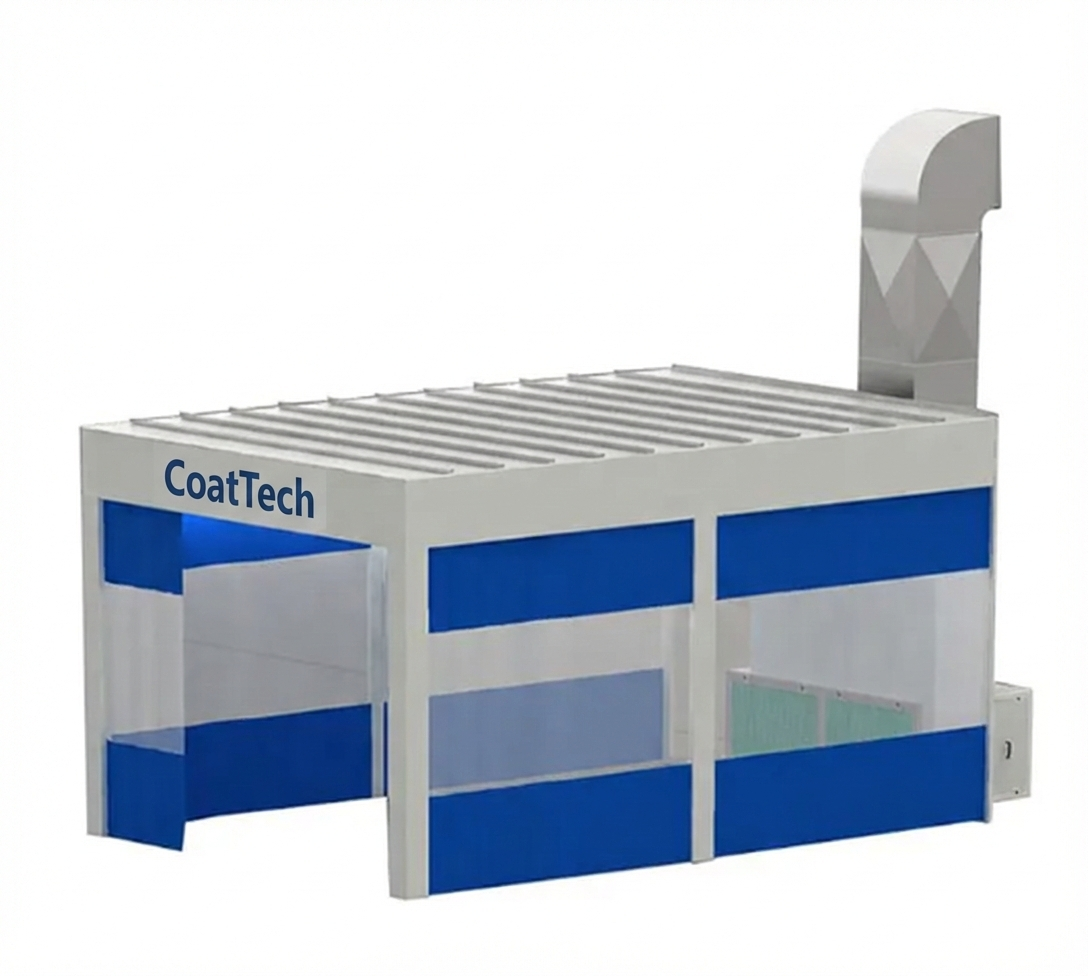

CoatTech Thermal Pro Diesel Heated Prep Station With Recirculation For Accelerating The Drying Of Waterborne Primers

CoatTech Thermal Pro Diesel Heated Prep Station With Recirculation For Accelerating The Drying Of Waterborne Primers

Introduction:

The CT-Prep A6 is a versatile "Spray & Bake" preparation bay. Equipped with a high-efficiency Riello Diesel Burner, it can heat the intake air up to 60°C. This is essential for accelerating the drying of waterborne primers and maintaining a comfortable workspace in cold climates. It adopts a double-inlet centrifugal fan for large air capacity and high temperature resistance.

Technical Specification Sheet

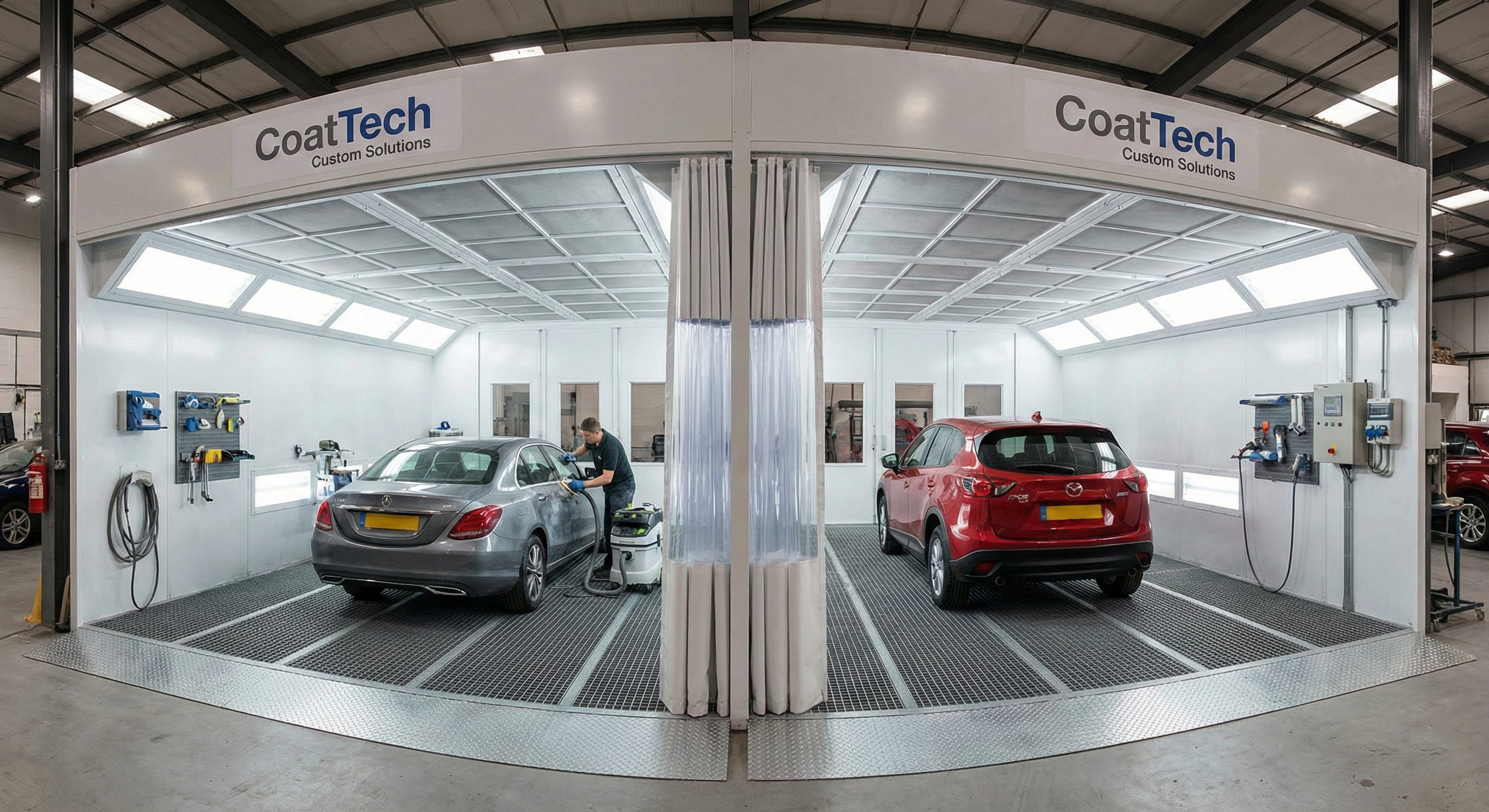

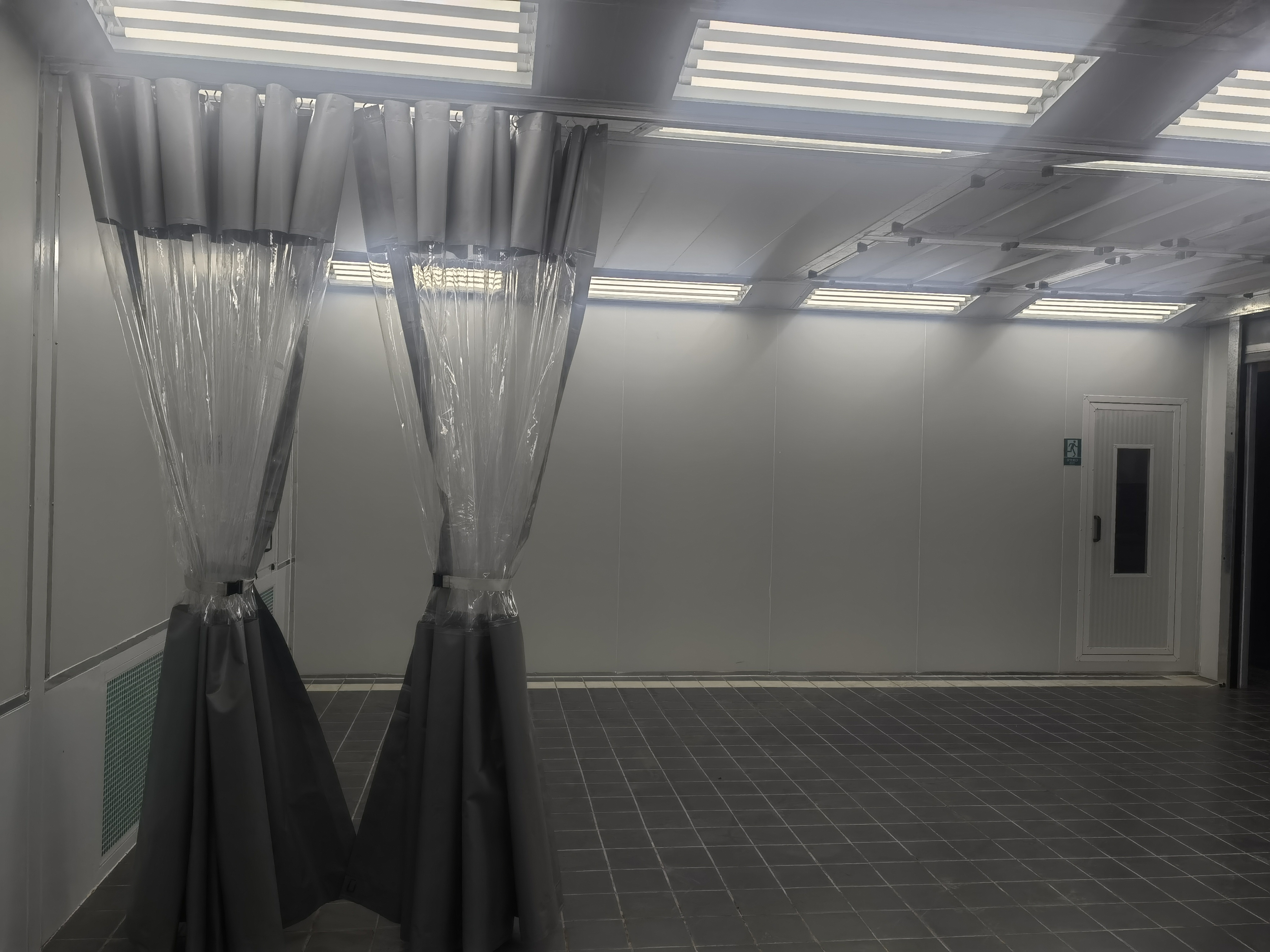

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

• Convenience: Easily slide curtains open to move cars in and out quickly.

• Visibility: Transparent windows allow the manager to monitor work progress.

• Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

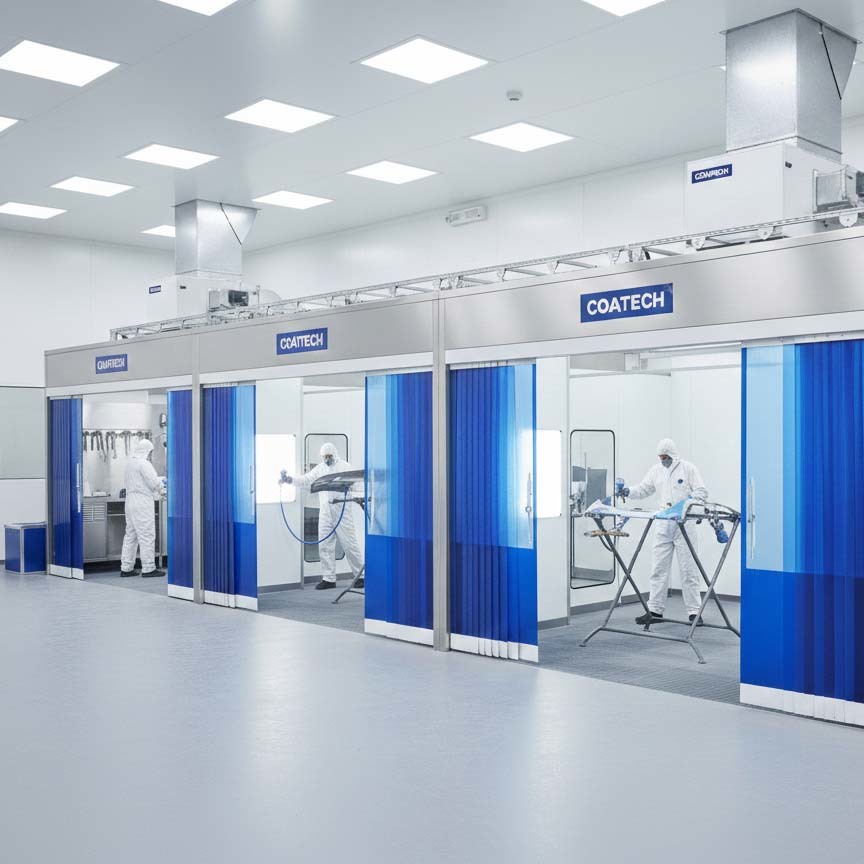

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
